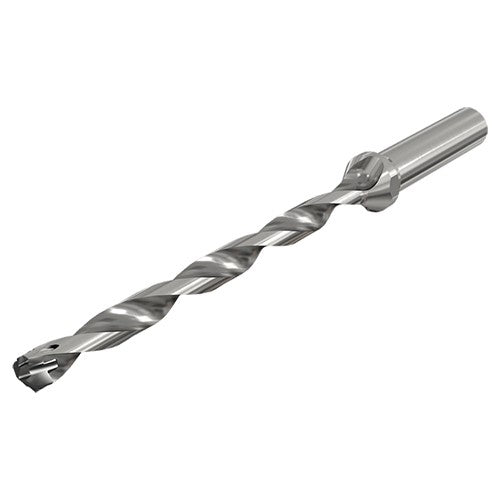

DCN 1181-1417-125R-12D
Item #: EH233260251
Brand: Iscar
Model #: 3260251
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.181″ |
| Overall Length (OAL) | 19.27″ |
| Usable Length (LU) | 14.39″ |
| Shank Length (LS) | 2.36″ |
| Length Group | 12D |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | ICP 300 |
| Tool Type | Indexable Insert Drills |
| Point Length (PL) | 0.215″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Body Material | Steel |
| Insert Seat Size Code (SSC) | 30.0 |
| Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Minimum (DCN) | 1.181″ |
| Decimal Equivalent | 1.181″ |
| Cutting Diameter Maximum (DCX) | 1.217″ |
| Body Diameter Reduced (BDRED) | 1.65″ |
| Protruding Length (LPR) | 16.91″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 16.695″ |
