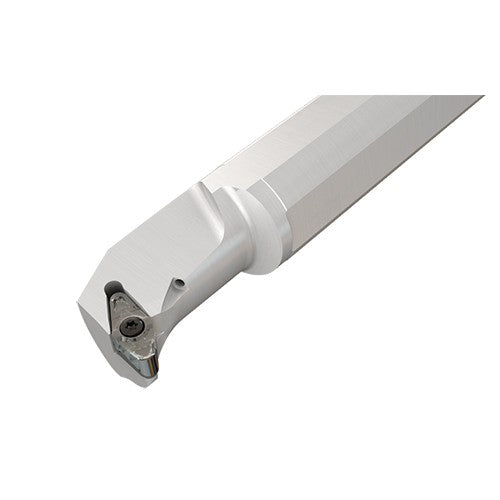

A-SVQNL 24-4-AL-JHP
Item #: EH233336017
Brand: Iscar
Model #: 3336017
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 13.705″ |
| Application | | Int. 35° Diamond 107.5°Approa | |
| Reduced Body Diameter Length (LDRED) | 2.36″ |
| Rake Angle Axial (GAMP) | 6.5 Degrees |
| Shank Height (H) | 1.417″ |
| Rake Angle Radial (GAMF) | 14.5 Degrees |
| Functional Width (WF) | 0.921″ |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNGU 220630-R3N |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.929″ |
| Measurement Type | Inch |
