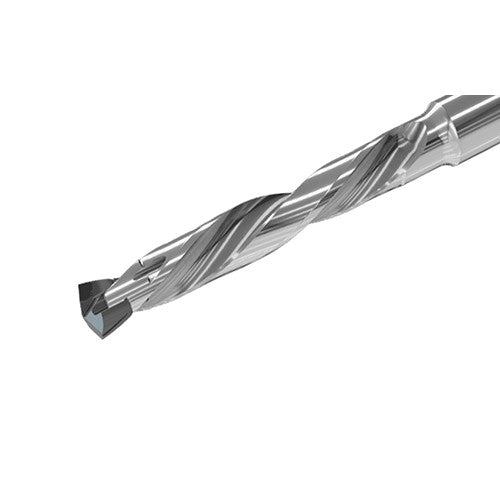

DCN 0335-169-0394C-5D
Item #: EH233359500
Brand: Iscar
Model #: 3359500
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.335″ |
| Protruding Length (LPR) | 2.161″ |
| Usable Length (LU) | 1.724″ |
| Overall Length (OAL) | 3.697″ |
| Length Group | 5D |
| Shank Length (LS) | 1.57″ |
| Shank Type | Round |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Master Insert Identification (MIID) | ICP 085 |
| Insert Seat Size Code (SSC) | 8.0 |
| Point Length (PL) | 0.05079″ |
| Cutting Diameter Minimum (DCN) | 0.335″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.35″ |
| Decimal Equivalent | 0.335″ |
