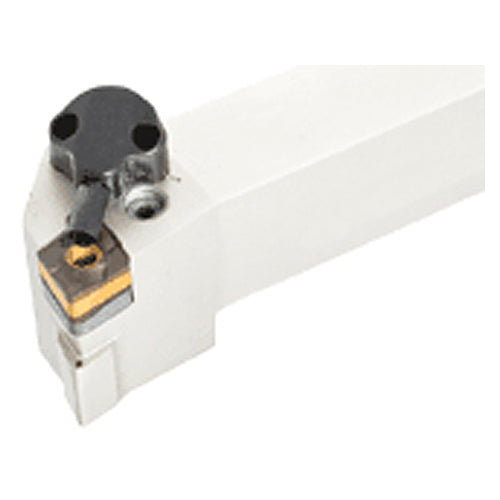

PCLNR 3232P-12X-JHP
Item #: EH233606750
Brand: Iscar
Model #: 3606750
| Product Specifications | |
|---|---|
| Shank Height (H) | 32 mm |
| Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 32 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 33 mm |
| Body Material | Steel |
| Functional Width (WF) | 40 mm |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | CNMX 1207, CNMG 1204 |
