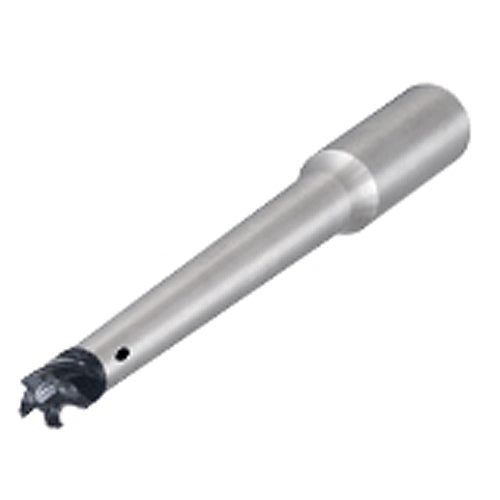

MM S-D-L170-C20-T10-C
Item #: EH283103649
Brand: Iscar
Model #: 3103649
| Product Specifications | |
|---|---|
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 |
| Body Length (LB) | 118.3 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Weight of Item (WT) | 0.61 Kg |
| Overall Length (OAL) | 170 mm |
| Measurement Type | Metric |
| Body Length Maximum (LBX) | 120 mm |
| Rotational Speed Maximum (RPMX) | 28140 Rev/min |
| Coolant Supply Property (CSP) | External |
| Body Material | Steel |
| Tool Type | Cylindrical Shanks |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 15.3 mm |
