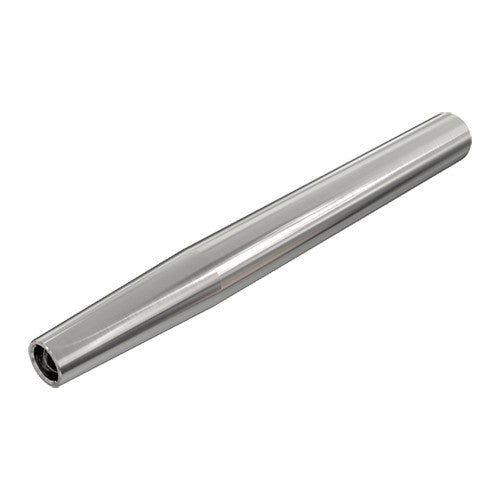

MM S-B-L250-W40-T15
Item #: EH283105421
Brand: Iscar
Model #: 3105421
| Product Specifications | |
|---|---|
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T15 |
| Functional Length (LF) | 210 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Weight of Item (WT) | 2.12 Kg |
| Overall Length (OAL) | 250 mm |
| Measurement Type | Metric |
| Body Length Maximum (LBX) | 100 mm |
| Rotational Speed Maximum (RPMX) | 21840 Rev/min |
| Coolant Supply Property (CSP) | External |
| Body Material | Steel |
| Tool Type | Cylindrical Shanks |
| Connection Code Machine Side (CCMS) | Weldon |
| Body Diameter (BD) | 23.9 mm |
