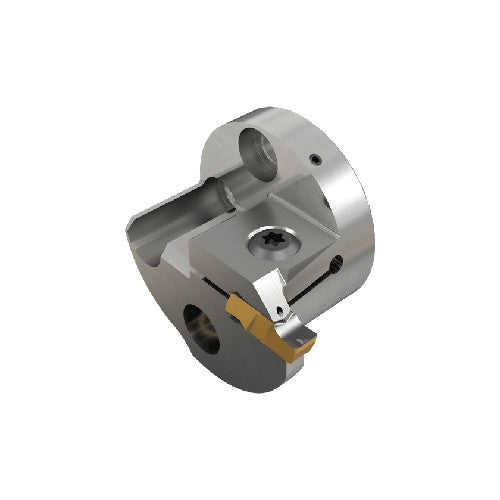

AVC-D32-GAIR-5
Item #: EH283325009
Brand: Iscar
Model #: 3325009
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.177″ |
| Connection Diameter Machine Side (DCONMS) | 1.26″ |
| Cutting Width Maximum (CWX) | 0.252″ |
| Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.197″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.535″ |
| Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.866″ |
| Measurement Type | Inch |
