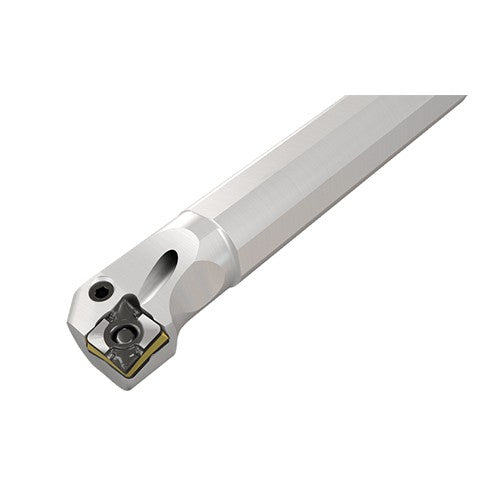

A-PCLXR 16-3X
Item #: EH283346715
Brand: Iscar
Model #: 3346715
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 8″ |
| Application | | Int. 80° Diamond 95° Approach | |
| Head Length (LH) | 1.57″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 0.92″ |
| Rake Angle Radial (GAMF) | 8 Degrees |
| Functional Width (WF) | 0.64″ |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMG 09.. |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-1/4″ |
| Measurement Type | Inch |
