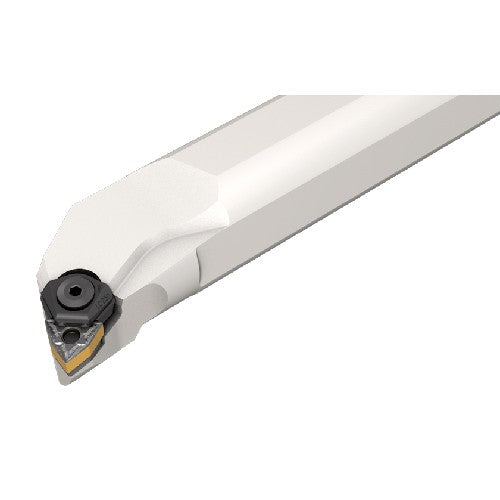

S-MWLNL 20-4W
Item #: EH283601365
Brand: Iscar
Model #: 3601365
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Application | | Int. 80° Trigon 95° Approach | |
| Overall Length (OAL) | 14″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.77″ |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 1.14″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.77″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | WNMG 431-GN |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 1.46″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
