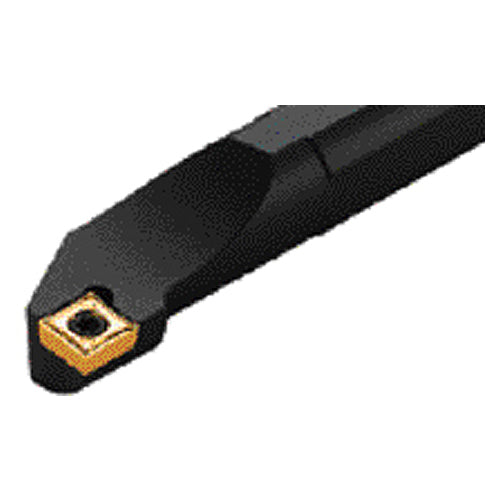

S16Q SQLCR-09
Item #: EH283601573
Brand: Iscar
Model #: 3601573
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Int. 80° Q#MG 95° Approach | |
| Overall Length (OAL) | 180 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 15 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | QCMT 09T304-SM |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 20 mm |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
