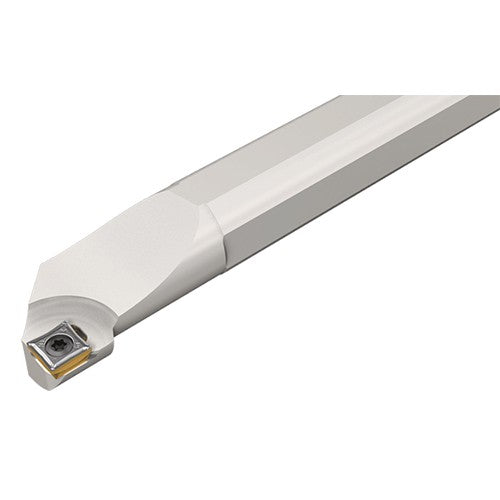

S-SUXCL 16-10 CM
Item #: EH283601778
Brand: Iscar
Model #: 3601778
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Application | | Int. 80° Diamond 95° Approach | Int. 80° Q#MG 95° Approach | Int. 90° Square 45° Approach | Int. Round Face & Turn | |
| Overall Length (OAL) | 12″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 2″ |
| Rake Angle Radial (GAMF) | -4 Degrees |
| Shank Height (H) | 0.91″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.64″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | CC95MT 100504-SM |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 1.26″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
