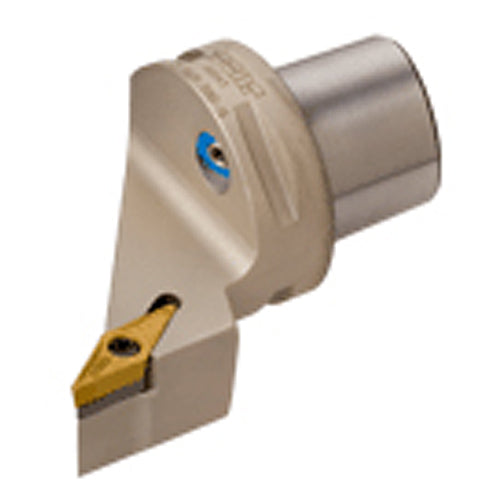

C4 SVJCL-27050-11
Item #: EH283602478
Brand: Iscar
Model #: 3602478
| Product Specifications | |
|---|---|
| Overall Length (OAL) | 2.913″ |
| Coolant Supply Property (CSP) | Through Hole |
| Functional Length (LF) | 1.968″ |
| Application | | Ext. 35° Diamond 93° Approach | |
| Functional Width (WF) | 1.063″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | VC.. 1103 |
| Insert Style | 1.968″ |
