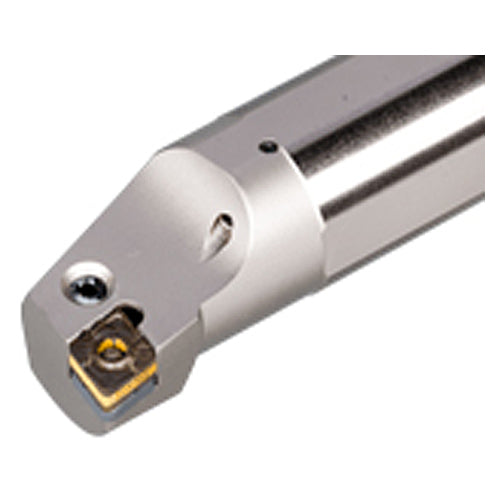

A-PCLNR 16-4X
Item #: EH283602746
Brand: Iscar
Model #: 3602746
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 12″ |
| Rake Angle Axial (GAMP) | -7 Degrees |
| Reduced Body Diameter Length (LDRED) | 2″ |
| Rake Angle Radial (GAMF) | -14 Degrees |
| Shank Height (H) | 0.91″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.65″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.97″ |
| Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Inch |
