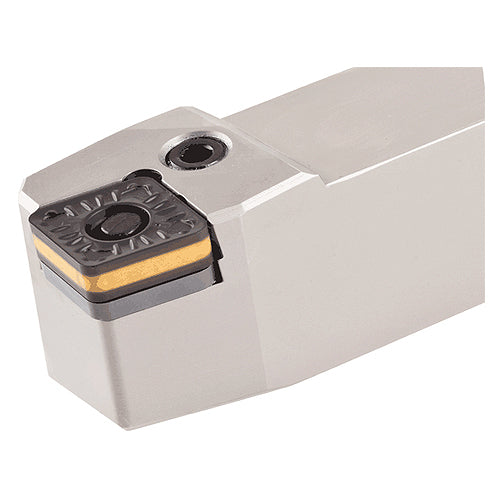

PCBOR 4040S-25-IQ
Item #: EH283603298
Brand: Iscar
Model #: 3603298
| Product Specifications | |
|---|---|
| Shank Height (H) | 40 mm |
| Application | | Ext. 100° Diamond 75° Approach | |
| Shank Width (B) | 40 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 250 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 50 mm |
| Body Material | Steel |
| Functional Width (WF) | 35 mm |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 25.4 mm |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | COMG 2509 |
