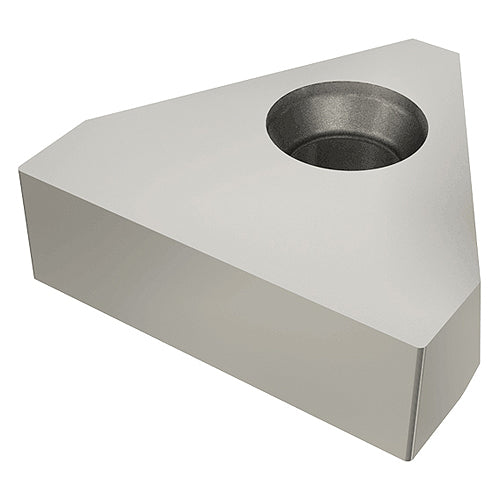

XNUW 1003-06 IC08
Item #: EH286403575
Brand: Iscar
Model #: 6403575
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.409″ |
| Shape | Special |
| Insert Thickness (S) | 1/8″ |
| Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Application | | Ext. Grooving | Int. Grooving | Int. Grooving (side limit) | |
| Insert Length (INSL) | 0.669″ |
| Applicable Material | | Non Ferrous Metals | |
| Fixing Hole Diameter (D1) | 0.178″ |
| Measurement Type | Inch |
| Coating | Uncoated |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC08 |
| Body Material | Carbide |
