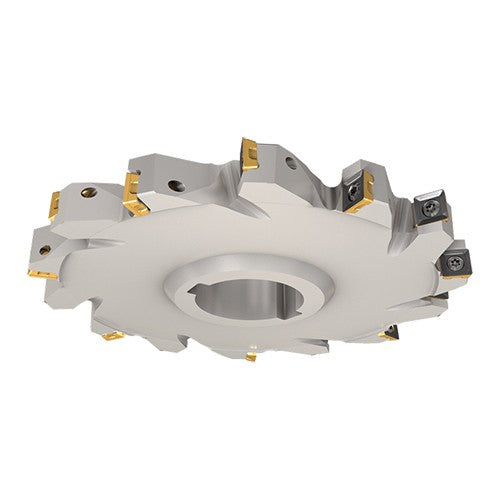

SDN D200-20-50-12
Item #: EH3100896
Brand: Iscar
Model #: 3100896
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 200 mm |
| Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 14 |
| Master Insert Identification (MIID) | QDMT 1205PDN-RM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 |
| Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Depth of Cut Maximum (APMX) | 20 mm |
| Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 63 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 69 mm |
| Body Material | Steel |
| Flute Count (NOF) | 14 |
| Connection Code Machine Side (CCMS) | Disk type |
