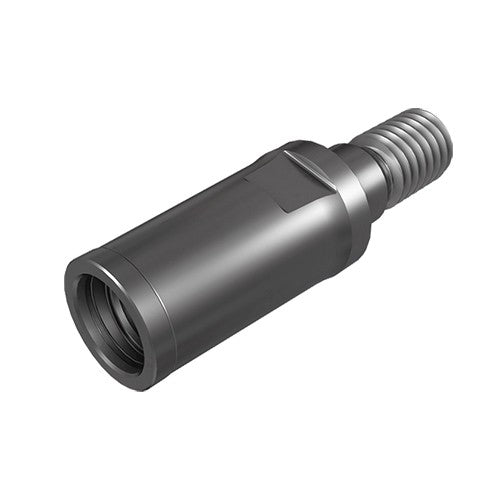

MM CAB T08M08-16/.63
Item #: EH3103014
Brand: Iscar
Model #: 3103014
| Product Specifications | |
|---|---|
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 |
| Weight of Item (WT) | 0.06 Lbs |
| Connection Diameter Machine Side (DCONMS) | 0.512″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | M08 |
| Overall Length (OAL) | 0.213″ |
| Drive Size (DRVS) | 0.433″ |
| Clamping Length Machine Side (LSCMS) | 0.689″ |
| Measurement Type | Inch |
| Tool Type | Interchangeable Milling Connectors |
| Body Material | Steel |
| Body Diameter (BD) | 0.461″ |
| Connection Code Machine Side (CCMS) | FLEXFIT |
