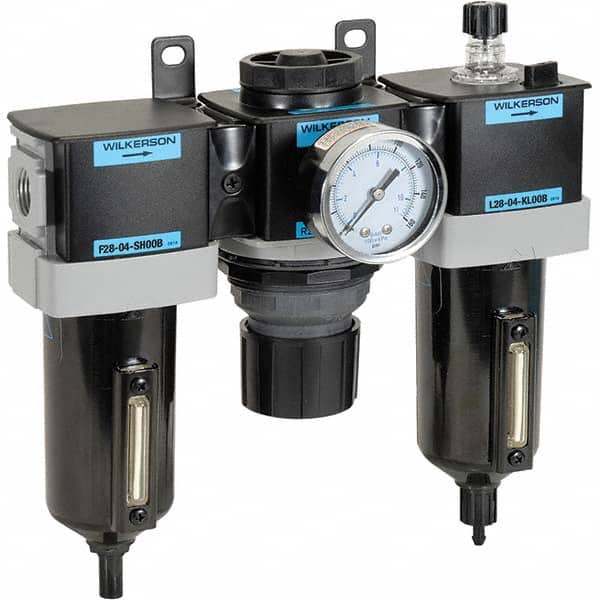

Wilkerson - Filter, Regulator & Lubricator (FRL) Units Configuration: 3 Pc. Filter-Regulator-Lubricator Body Type: Standard
Item #: 11760378
Brand: Wilkerson
Model #: C28-06-FKG0B
Product Specifications
Filter, Regulator & Lubricator (FRL) Units; Configuration: 3 Pc. Filter-Regulator-Lubricator ; Body Type: Standard ; Port Size NPT: 3/4 ; Maximum Supply Pressure (psi): 150 ; Height (Inch): 9.37 ; Width (Decimal Inch): 9.3300
| Configuration | 3 Pc. Filter-Regulator-Lubricator |
| Body Type | Standard |
| Port Size NPT | 3/4 |
| Maximum Supply Pressure (psi) | 150 |
| Height (Inch) | 9.37 |
| Width (Decimal Inch) | 9.3300 |
| Bowl Material | Polycarbonate |
| Standard Cubic Feet Per Minute | 110.00 |
| Includes Sight Glass | No |
| Bowl Guard | Yes |
| Brackets Included | Yes |
| Filter Bowl Capacity (oz.) | 2.9 |
| Drain Type | Manual Drain |
| Gauge Port Size (Inch) | 1/4 |
| Pressure Gauge Included | Yes |
| Minimum Temperature (F) | -13 |
| Maximum Temperature (F) | 125 |
| Micron Rating | 5µ |
| Series | 28 |
| Range | 0 - 125 |
| Modular Connection | Yes |
| Lubricator Bowl Capacity (oz.) | 6.0 |
