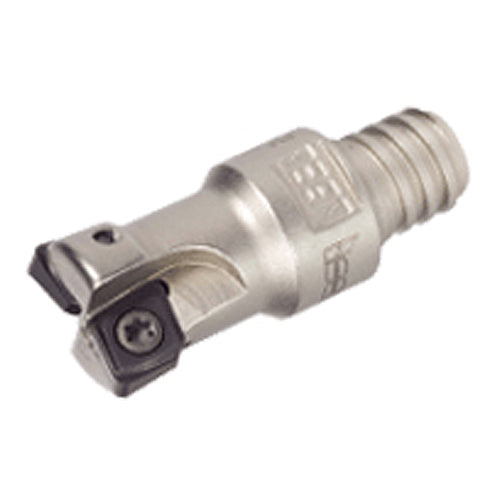

E93CN D16-2-MMT10-07
Item #: EH3104247
Brand: Iscar
Model #: 3104247
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 16 mm |
| Functional Length (LF) | 27 mm |
| Cutting Diameter (DC) | 16 mm |
| Tool Type | Toroidal endmills |
| Cutting Item Count (CICT) | 2 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Depth of Cut Maximum (APMX) | 5 mm |
| Drive Size (DRVS) | 13 mm |
| Overall Length (OAL) | 38.64 mm |
| Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | CNHT 070315 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.03 Kg |
