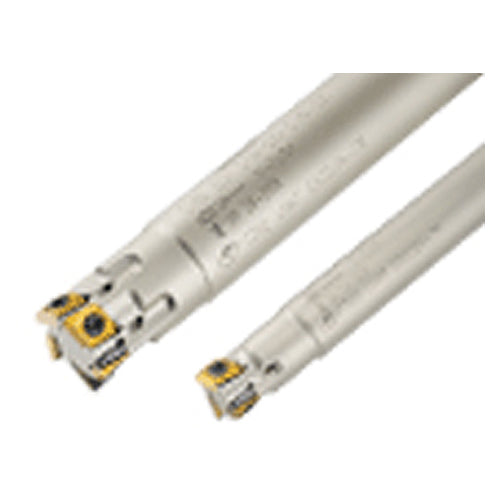

T290 ELN D10-02-C10-05
Item #: EH3104874
Brand: Iscar
Model #: 3104874
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 10 mm |
| Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 10 mm |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 |
| Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 5 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 80 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Shouldering | Slotting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | T290 LNHT 050202TR |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.04 Kg |
