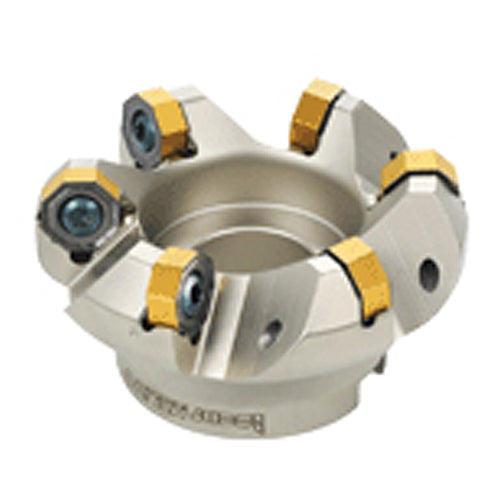

SOF45 8/16-D040-04-22R
Item #: EH3105370
Brand: Iscar
Model #: 3105370
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 48 mm |
| Master Insert Identification (MIID) | ONHU 050500-PL |
| Cutting Diameter (DC) | 40 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 48 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.9 mm |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 41.6 mm |
| Tool Cutting Edge Angle (KAPR) | 44 Degrees |
| Hub Diameter (DHUB) | 45 mm |
| Tool Type | 45° Facemills |
| Arbor Style | A |
