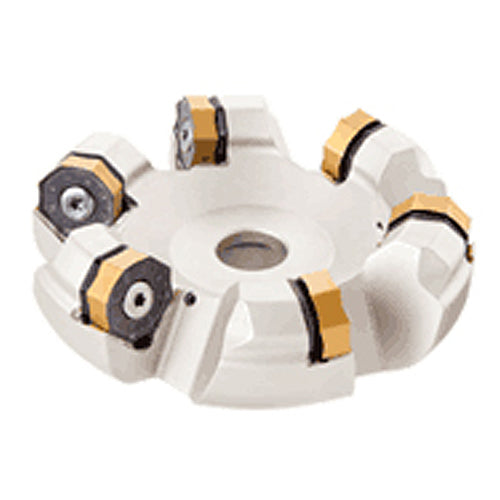

SOF45 D160-08-40-R26
Item #: EH3106340
Brand: Iscar
Model #: 3106340
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 184.5 mm |
| Master Insert Identification (MIID) | ONMU 100816-N-HL |
| Cutting Diameter (DC) | 164.1 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 184.5 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 11 mm |
| Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 92 mm |
| Tool Type | 45° Facemills |
| Arbor Style | C |
