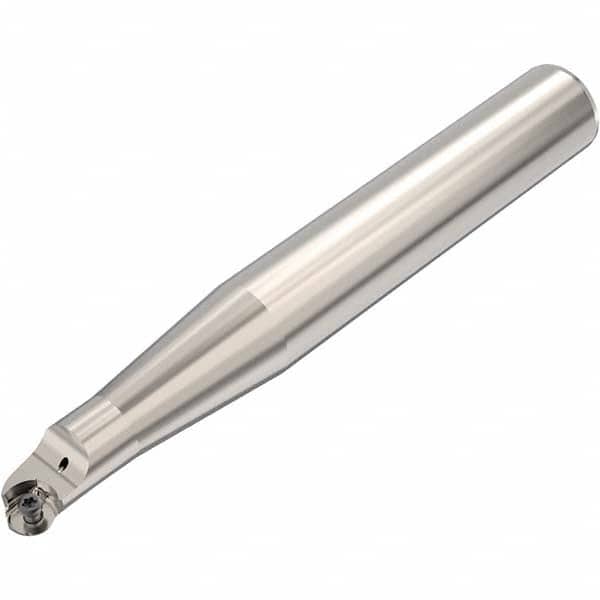

Seco - Indexable Copy End Mills Cutting Diameter (mm): 5.90 Cutting Diameter (Decimal Inch): 0.2323
Item #: 94870508
Brand: Seco
Model #: 03278796
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 5.90 ; Cutting Diameter (Decimal Inch): 0.2323 ; Maximum Depth of Cut (mm): 5.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 20.00 ; Number of Cutter Inserts: 1
| Cutting Diameter (mm) | 5.90 |
| Cutting Diameter (Decimal Inch) | 0.2323 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Number of Cutter Inserts | 1 |
| Insert Style | RP..10 |
| Toolholder Style | R217.29 |
| Series | R217.29 |
| Overall Length (mm) | 150.00 |
| Insert Diameter (mm) | 10.00 |
| Insert Holding Method | Screw |
| Toolholder Material | High Speed Steel |
| Through Coolant | Yes |
| Number of Flutes | 1 |
| Shank Length (mm) | 90.00 |
| Maximum RPM | 7 |
