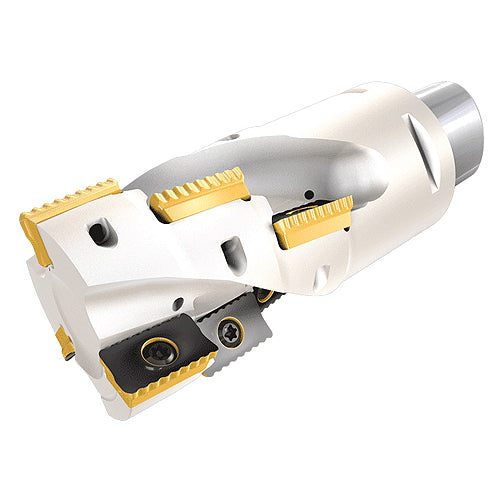

P290 ACK D40-3-87-C6-18
Item #: EH3107185
Brand: Iscar
Model #: 3107185
| Product Specifications | |
|---|---|
| Application | | Rampdown | Shouldering | |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Cutting Item Count (CICT) | 15 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 3.425″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 1.575″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ |
| Body Material | Steel |
| Flute Count (NOF) | 3 |
| Tool Type | 90° Extended flute endmills |
| Cutting Length | 3.43″ |
| Connection Code Machine Side (CCMS) | CAMFIX |
| Cutting Depth | 4.173″ |
