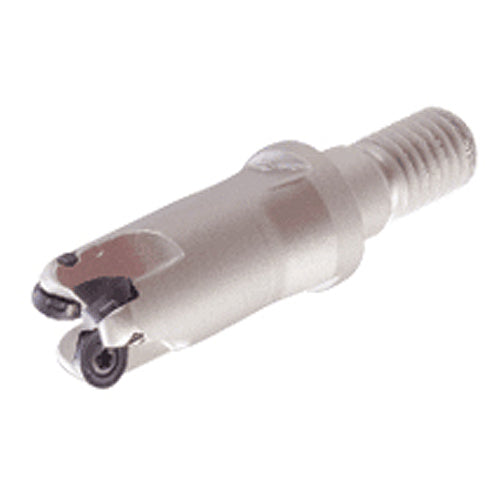

ER D12A20-2-M10-08
Item #: EH313101793
Brand: Iscar
Model #: 3101793
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Weight of Item (WT) | 0.05 Kg |
| Cutting Diameter (DC) | 12 mm |
| Functional Length (LF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Tool Type | Round corner cutters |
| Cutting Item Count (CICT) | 2 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Depth of Cut Maximum (APMX) | 4 mm |
| Body Diameter (BD) | 17.2 mm |
| Overall Length (OAL) | 52 mm |
| Corner Radius (RE) | 4 mm |
| Ramping Angle Maximum (RMPX) | 6.5 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | RXCR 0802 |
| Connection Code Machine Side (CCMS) | FLEXFIT |
