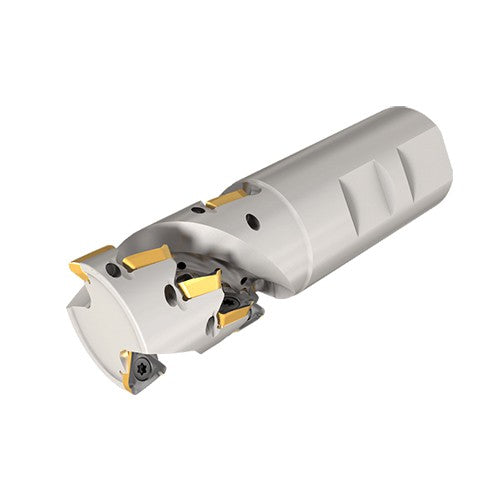

HM390 TPK D40-49-4-W32-10
Item #: EH313322869
Brand: Iscar
Model #: 3322869
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Head Length (LH) | 59 mm |
| Cutting Diameter (DC) | 40 mm |
| Functional Length (LF) | 89 mm |
| Cutting Item Count (CICT) | 28 |
| Tool Type | 90° Extended flute shell mill |
| Depth of Cut Maximum (APMX) | 49 mm |
| Flute Count (NOF) | 4 |
| Overall Length (OAL) | 125 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Shouldering | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TPKT 1003 |
| Body Material | Steel |
| Weight of Item (WT) | 0.75 kg |
| Connection Code Machine Side (CCMS) | Weldon |
