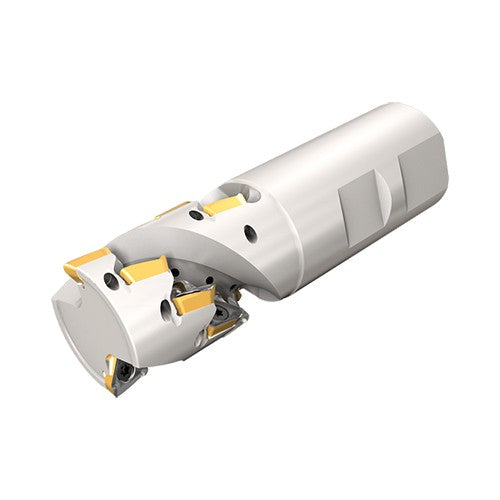

HM390 TPKD1.5-1.9-4-W1.25
Item #: EH313322874
Brand: Iscar
Model #: 3322874
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Head Length (LH) | 2.216″ |
| Cutting Diameter (DC) | 1-1/2″ |
| Functional Length (LF) | 3.609″ |
| Cutting Item Count (CICT) | 28 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 1.949″ |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 4-3/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon |
| Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Shouldering | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 1003 |
| Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.29 Lbs |
