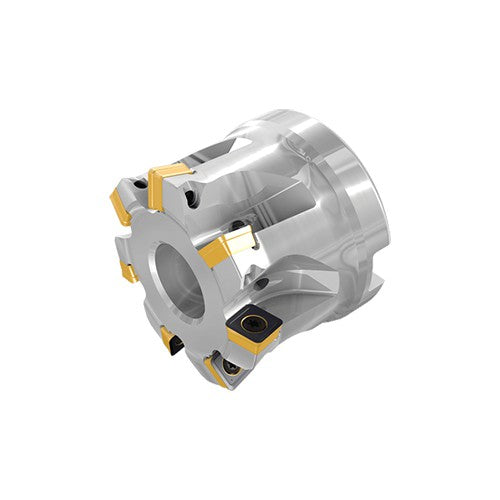

FFQ4 D160-10-40-17
Item #: EH313323486
Brand: Iscar
Model #: 3323486
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 160 mm |
| Arbor Style | C |
| Cutting Diameter (DC) | 130.8 mm |
| Master Insert Identification (MIID) | FFQ4 SOMT 170625T |
| Cutting Diameter Maximum (DCX) | 160 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 63 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 95 mm |
