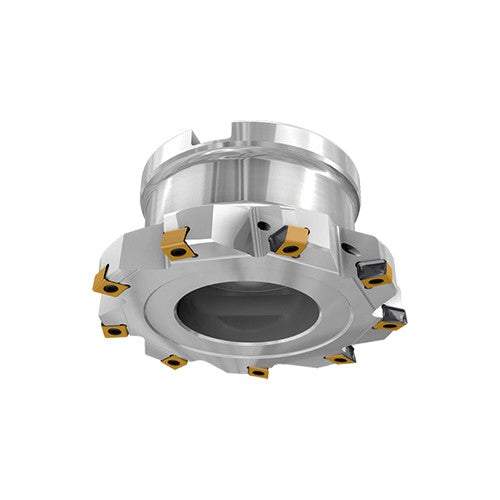

HTF D125-09-40-R-LN10
Item #: EH313331879
Brand: Iscar
Model #: 3331879
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 125 mm |
| Arbor Style | B |
| Cutting Diameter (DC) | 125 mm |
| Master Insert Identification (MIID) | HTP LNHT 1006 ER |
| Cutting Item Count (CICT) | 9 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 0.45 mm |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 63 mm |
| Application | | Facing | Shouldering | |
| Hub Diameter (DHUB) | 92 mm |
| Measurement Type | Metric |
