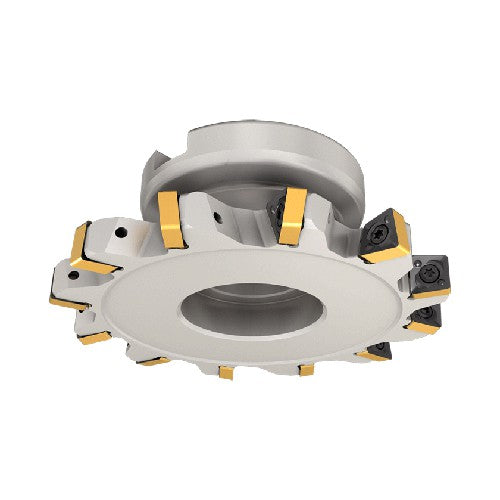

FDN D100-10-27-XN09
Item #: EH313343098
Brand: Iscar
Model #: 3343098
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 100 mm |
| Overall Length (OAL) | 40 mm |
| Cutting Item Count (CICT) | 12 |
| Master Insert Identification (MIID) | XNMU 0904... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Depth of Cut Maximum (APMX) | 10 mm |
| Arbor Style | B |
| Cutting Depth Maximum (CDX) | 26 mm |
| Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 60 mm |
| Measurement Type | Metric |
| Usable Length (LU) | 25 mm |
| Body Material | Steel |
| Flute Count (NOF) | 10 |
