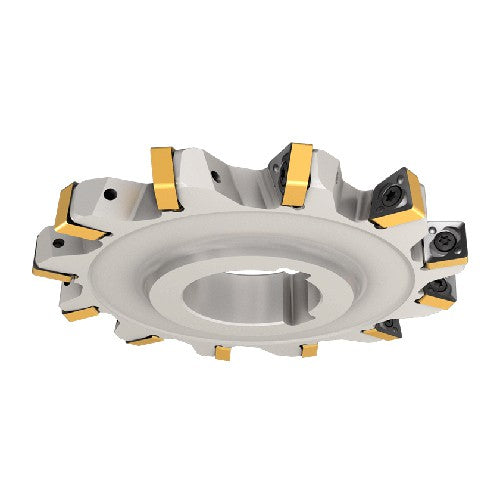

SDN D160-10-40-XN09
Item #: EH313343104
Brand: Iscar
Model #: 3343104
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 160 mm |
| Overall Length (OAL) | 14 mm |
| Cutting Item Count (CICT) | 18 |
| Master Insert Identification (MIID) | XNMU 0904... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 18 |
| Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 51 mm |
| Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 55 mm |
| Body Material | Steel |
| Cutting Width (CW) | 10 mm |
