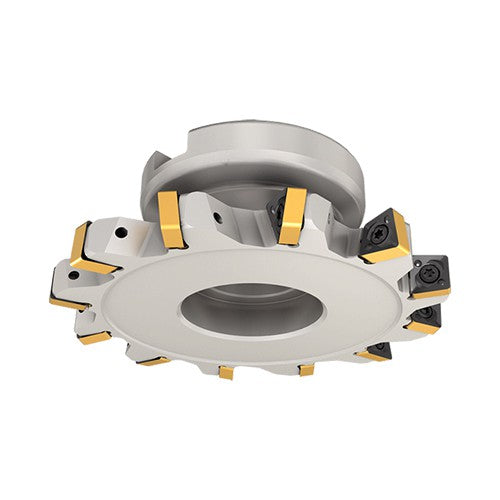

FDN D6.0-0.39-12-XN09
Item #: EH313393666
Brand: Iscar
Model #: 3393666
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6″ |
| Overall Length (OAL) | 2-1/2″ |
| Cutting Item Count (CICT) | 16 |
| Master Insert Identification (MIID) | XNMU 0904... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 16 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 1.65″ |
| Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 3.15″ |
| Measurement Type | Inch |
| Cutting Width (CW) | 0.39″ |
| Body Material | Steel |
| Usable Length (LU) | 1.9″ |
