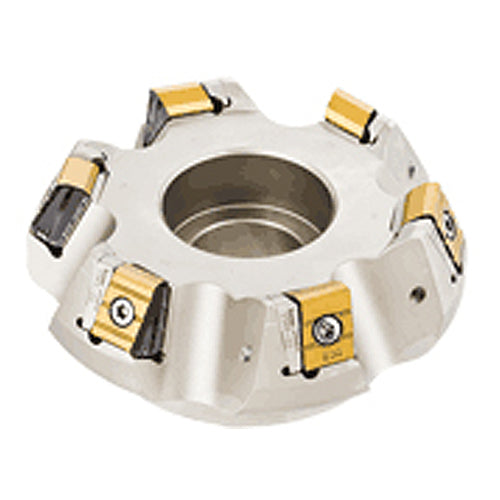

T465FLN D5.0-06-1.5R-22ST
Item #: EH3181071
Brand: Iscar
Model #: 3181071
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5.73″ |
| Arbor Style | B |
| Cutting Diameter (DC) | 5″ |
| Master Insert Identification (MIID) | T465 LNHT 2212-ZNTR |
| Cutting Diameter Maximum (DCX) | 5.73″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 6 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 3.74″ |
| Tool Type | 60°-65° Facemills |
