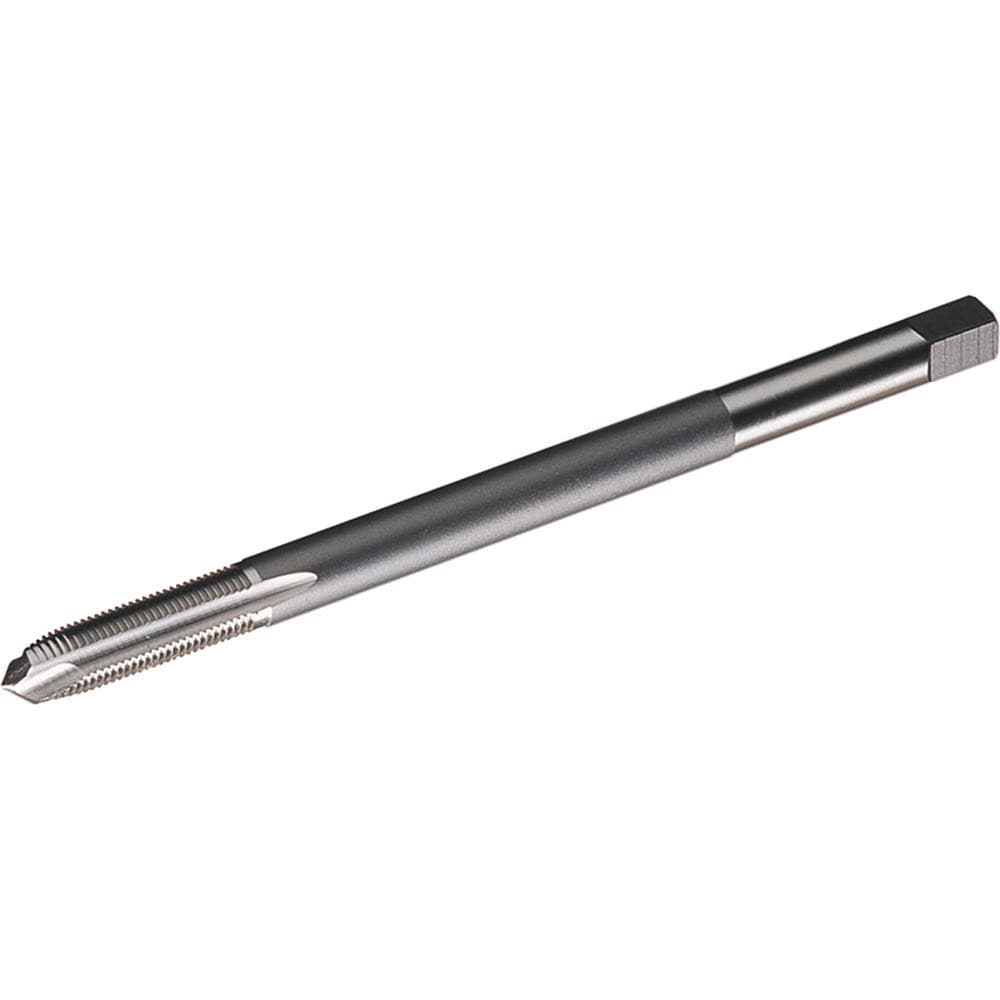

Brand: Widia / Part #: 2747020
Item #: 90877168
Brand: Widia
Model #: 2747020
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | Uncoated |
| Threads per Inch | 16 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.2500 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Non-Ferrous Metal |
| Series | 5301 |
