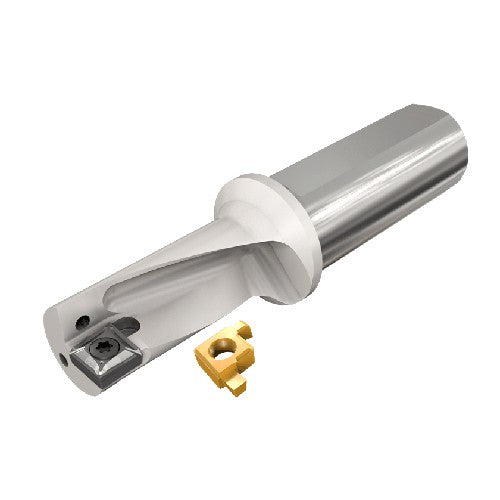

DR-MF-08L-2.25D-12A-04
Item #: EH3202461
Brand: Iscar
Model #: 3202461
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Usable Length (LU) | 18 mm |
| Measurement Type | Metric |
| Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Length Group | 2D |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Master Insert Identification (MIID) | XCMT 04... |
| Protruding Length (LPR) | 22.5 mm |
| Body Material | Steel |
| Shank Length (LS) | 42 mm |
