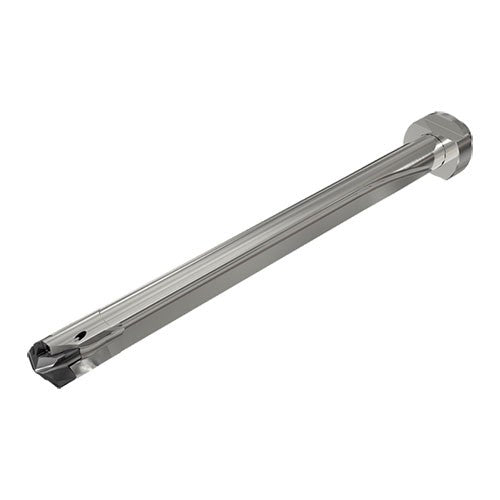

MNSNT 0472-1574-MF16X1
Item #: EH323335832
Brand: Iscar
Model #: 3335832
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.472″ |
| Master Insert Identification (MIID) | HCP 120 |
| Usable Length (LU) | 15.748″ |
| Point Length (PL) | 0.1244″ |
| Application | | Drilling | Gundrill | |
| Body Material | Steel |
| Tool Type | Indexable Insert Drills |
| Flange Diameter (DF) | 0.457″ |
| Insert Seat Size Code (SSC) | 12.0 |
| Decimal Equivalent | 0.472″ |
| Cutting Diameter Minimum (DCN) | 0.472″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Cutting Diameter Maximum (DCX) | 0.488″ |
| Body Diameter (BD) | 0.461″ |
| Protruding Length (LPR) | 18.701″ |
| Body Diameter Reduced (BDRED) | 0.457″ |
| Coolant Supply Property (CSP) | Through Hole |
| Drive Size (DRVS) | 0.63″ |
| Measurement Type | Inch |
