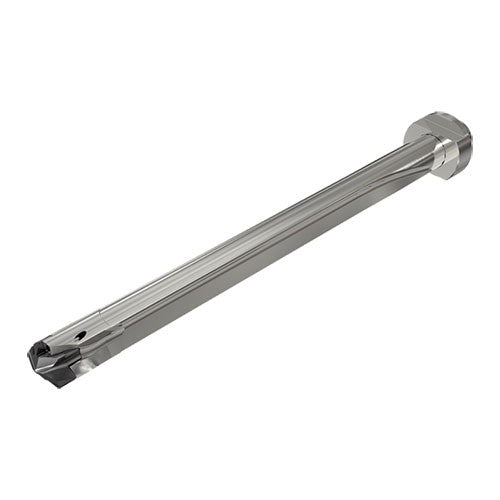

MNSNT 0512-1574-MF16X1
Item #: EH323335834
Brand: Iscar
Model #: 3335834
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.512″ |
| Master Insert Identification (MIID) | HCP 130 |
| Usable Length (LU) | 15.748″ |
| Point Length (PL) | 0.13818″ |
| Application | | Drilling | Gundrill | |
| Body Material | Steel |
| Tool Type | Indexable Insert Drills |
| Flange Diameter (DF) | 0.496″ |
| Insert Seat Size Code (SSC) | 13.0 |
| Decimal Equivalent | 0.512″ |
| Cutting Diameter Minimum (DCN) | 0.512″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Cutting Diameter Maximum (DCX) | 0.528″ |
| Body Diameter (BD) | 1/2″ |
| Protruding Length (LPR) | 18.74″ |
| Body Diameter Reduced (BDRED) | 0.496″ |
| Coolant Supply Property (CSP) | Through Hole |
| Drive Size (DRVS) | 0.63″ |
| Measurement Type | Inch |
