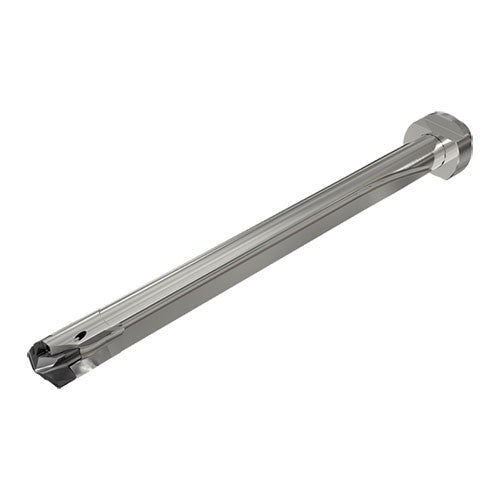

MNSNT 0945-1574-MF20X1
Item #: EH323335844
Brand: Iscar
Model #: 3335844
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.945″ |
| Master Insert Identification (MIID) | HCP 240 |
| Usable Length (LU) | 15.748″ |
| Point Length (PL) | 0.22165″ |
| Application | | Drilling | Gundrill | |
| Body Material | Steel |
| Tool Type | Indexable Insert Drills |
| Flange Diameter (DF) | 0.921″ |
| Insert Seat Size Code (SSC) | 24.0 |
| Decimal Equivalent | 0.945″ |
| Cutting Diameter Minimum (DCN) | 0.945″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | MF20X1 |
| Cutting Diameter Maximum (DCX) | 0.98″ |
| Body Diameter (BD) | 0.925″ |
| Protruding Length (LPR) | 19.882″ |
| Body Diameter Reduced (BDRED) | 0.921″ |
| Coolant Supply Property (CSP) | Through Hole |
| Drive Size (DRVS) | 1.102″ |
| Measurement Type | Inch |
