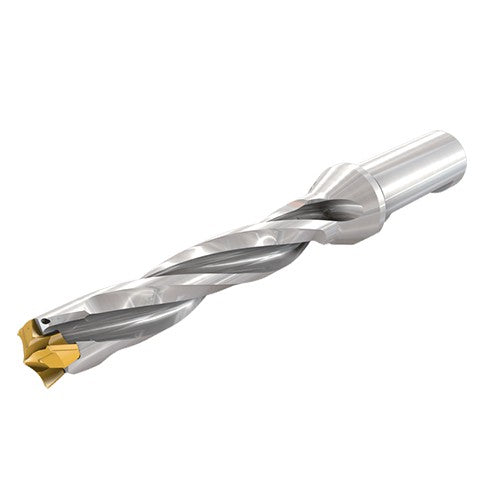

D3N 0906-272-125A-3D
Item #: EH323346981
Brand: Iscar
Model #: 3346981
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.906″ |
| Functional Length (LF) | 4.397″ |
| Usable Length (LU) | 2.912″ |
| Overall Length (OAL) | 6.949″ |
| Length Group | 3D |
| Shank Length (LS) | 2.36″ |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Master Insert Identification (MIID) | H3P 230-IQ |
| Insert Seat Size Code (SSC) | 23 |
| Point Length (PL) | 0.1933″ |
| Cutting Diameter Minimum (DCN) | 0.906″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.941″ |
| Flange Diameter (DF) | 1.65″ |
| Protruding Length (LPR) | 4.59″ |
| Decimal Equivalent | 0.906″ |
