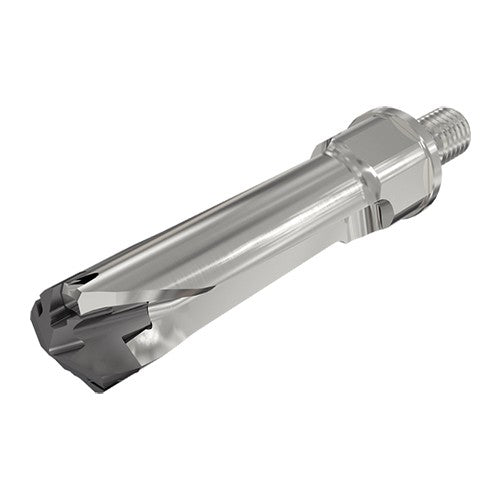

DCNM 105-032-M12-3D
Item #: EH323352566
Brand: Iscar
Model #: 3352566
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.413″ |
| Protruding Length (LPR) | 2.29″ |
| Usable Length (LU) | 1.5039″ |
| Overall Length (OAL) | 3.157″ |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 105 |
| Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Point Length (PL) | 0.06259″ |
| Insert Seat Size Code (SSC) | 10.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.413″ |
| Decimal Equivalent | 0.413″ |
| Cutting Diameter Maximum (DCX) | 0.429″ |
| Connection Code Machine Side (CCMS) | FLEXFIT |
