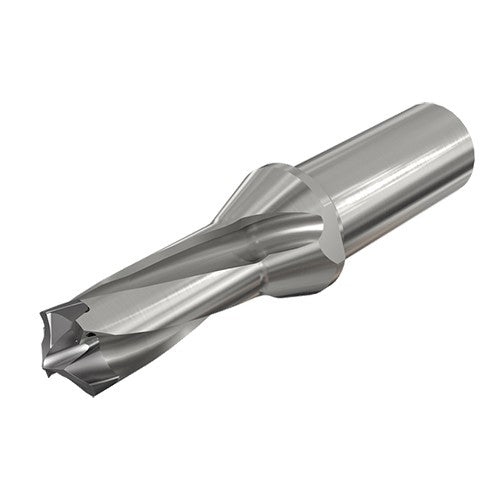

D3N 0512-077-063R-1.5D
Item #: EH323362927
Brand: Iscar
Model #: 3362927
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.512″ |
| Overall Length (OAL) | 3.724″ |
| Usable Length (LU) | 0.883″ |
| Shank Length (LS) | 1.89″ |
| Length Group | 2D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 0512 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Point Length (PL) | 0.1146″ |
| Insert Seat Size Code (SSC) | 13 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.512″ |
| Flange Diameter (DF) | 0.787″ |
| Cutting Diameter Maximum (DCX) | 0.528″ |
| Decimal Equivalent | 0.512″ |
| Protruding Length (LPR) | 1.835″ |
