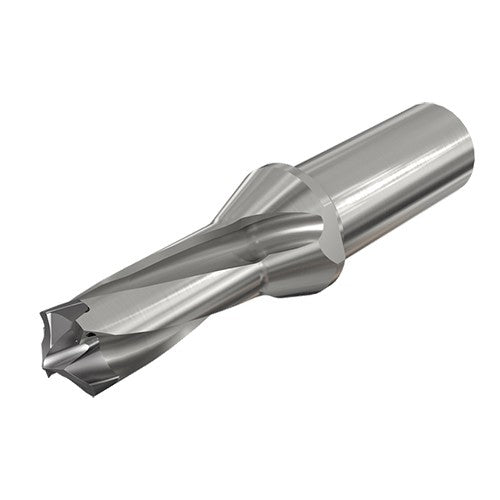

D3N 0984-150-125R-1.5D
Item #: EH323362967
Brand: Iscar
Model #: 3362967
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.984″ |
| Overall Length (OAL) | 5.871″ |
| Usable Length (LU) | 1.687″ |
| Shank Length (LS) | 2.36″ |
| Length Group | 2D |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 0984 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Point Length (PL) | 0.2091″ |
| Insert Seat Size Code (SSC) | 25 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.984″ |
| Flange Diameter (DF) | 1.575″ |
| Cutting Diameter Maximum (DCX) | 1.02″ |
| Decimal Equivalent | 0.984″ |
| Protruding Length (LPR) | 3.515″ |
