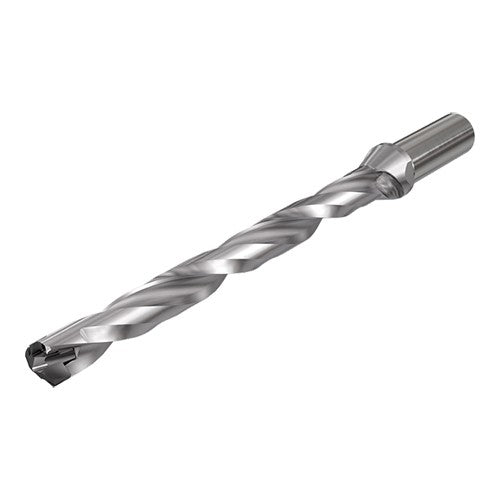

DCN 250-250-32R-10D
Item #: EH323388001
Brand: Iscar
Model #: 3388001
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| Protruding Length (LPR) | 289.5 mm |
| Usable Length (LU) | 253.8 mm |
| Overall Length (OAL) | 349.5 mm |
| Application | | Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Indexable Insert Drills |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Master Insert Identification (MIID) | ICP 250 |
| Insert Seat Size Code (SSC) | 25.0 |
| Point Length (PL) | 3.8 mm |
| Cutting Diameter Minimum (DCN) | 25 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 25.9 mm |
| Flange Diameter (DF) | 42 mm |
