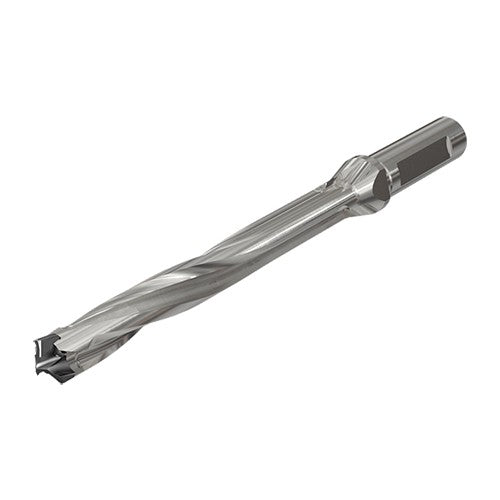

D3N 250-200-32A-8D
Item #: EH323392189
Brand: Iscar
Model #: 3392189
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| Overall Length (OAL) | 311.7 mm |
| Usable Length (LU) | 205.31 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Master Insert Identification (MIID) | H3P 250-IQ |
| Insert Seat Size Code (SSC) | 25 |
| Point Length (PL) | 5.12 mm |
| Cutting Diameter Minimum (DCN) | 25 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 25.9 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 251.72 mm |
