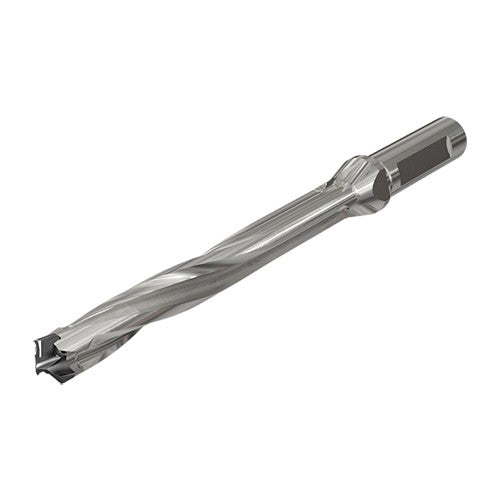

D3N 0984-787-125A-8D
Item #: EH323392320
Brand: Iscar
Model #: 3392320
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.984″ |
| Overall Length (OAL) | 12.272″ |
| Usable Length (LU) | 8.089″ |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Master Insert Identification (MIID) | H3P 250-IQ |
| Insert Seat Size Code (SSC) | 25 |
| Point Length (PL) | 0.202″ |
| Cutting Diameter Minimum (DCN) | 0.984″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.02″ |
| Flange Diameter (DF) | 1.654″ |
| Protruding Length (LPR) | 9.918″ |
| Decimal Equivalent | 0.984″ |
