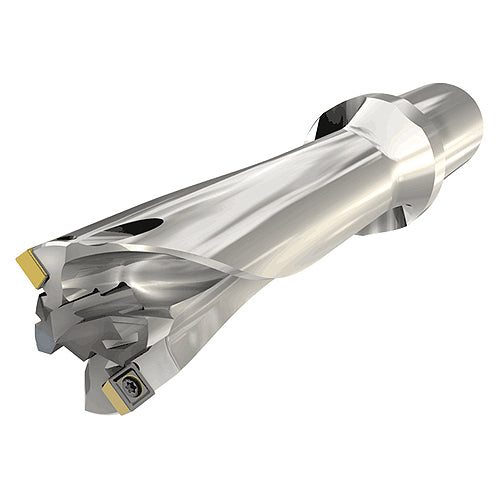

MNC 265-132 A32-155-06-5D
Item #: EH3260182
Brand: Iscar
Model #: 3260182
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 26.5 mm |
| Shank Length (LS) | 60 mm |
| Usable Length (LU) | 135.53 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Length Group | 5D |
| Measurement Type | Metric |
| Application | | Drilling | |
| Master Insert Identification (MIID) | SOGX 060304-W |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 167.03 mm |
| Body Diameter (BD) | 15.5 mm |
| Overall Length (OAL) | 227.05 mm |
| Body Diameter Reduced (BDRED) | 42 mm |
