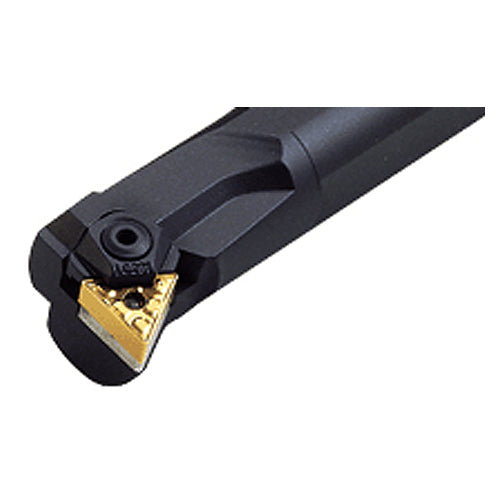

S32T MTLCL-16W
Item #: EH3600605
Brand: Iscar
Model #: 3600605
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 300 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 29 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | TCMT 16T304-F3P |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 39 mm |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
