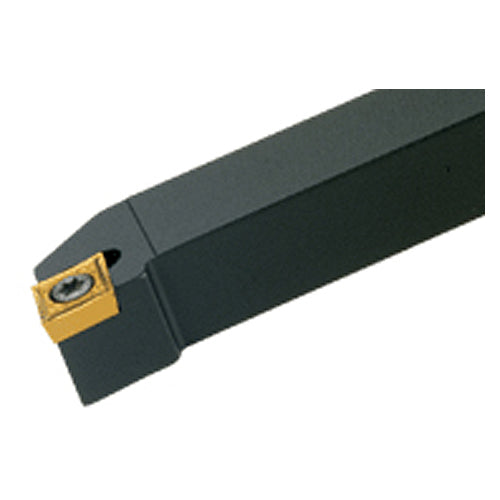

SCLCR 1616H-09
Item #: EH3600861
Brand: Iscar
Model #: 3600861
| Product Specifications | |
|---|---|
| Shank Height (H) | 16 mm |
| Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 16 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 100 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 14 mm |
| Body Material | Steel |
| Functional Width (WF) | 20 mm |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | CC.. 09T3 |
