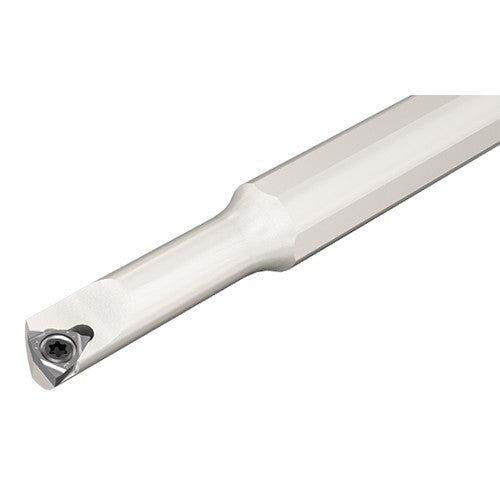

S-SWUBR 4-5
Item #: EH3601806
Brand: Iscar
Model #: 3601806
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 4″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.23″ |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.14″ |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WBMT 52.004L |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.275″ |
| Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Inch |
