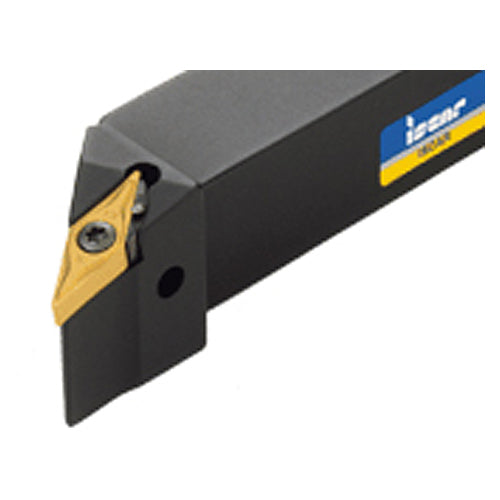

SVJNL 2020K-12F
Item #: EH3601914
Brand: Iscar
Model #: 3601914
| Product Specifications | |
|---|---|
| Shank Height (H) | 20 mm |
| Application | | Ext. 35° Diamond 93° Approach | |
| Shank Width (B) | 20 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 25 mm |
| Body Material | Steel |
| Functional Width (WF) | 25 mm |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 7.15 mm |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | VNMG 12T3 |
| Insert Style | 125mm |
